Brine Based Electrochlorinators
Other Products
Overview
Brine Based Electrochlorinators
Future initiatives The brine solution is then passed into an electrolysis cell where electrodes (anode and cathode) are A brine domestic electrochlorinator generates sodium hypochlorite (NaOCl), a disinfectant, through the electrolysis of a salt (NaCl) solution. This process involves passing an electrical current through the brine solution, splitting the salt into its constituent elements and producing chlorine gas, which then reacts with water and sodium hydroxide to form sodium hypochlorite
On-site production
Sodium hypochlorite is generated on-site, reducing the need for storage and transportation of hazardous chlorine gas or strong bleach solutions.
Safety
The generated solution is typically low in concentration (around 0.8% by weight), making it safer to handle than concentrated chlorine solutions.
Cost-effectiveness
In many cases, electrochlorination can be more cost-effective than purchasing pre-made sodium hypochlorite or chlorine-based disinfectants.
Environmental friendliness:
The process uses readily available salt and water, and the byproduct is hydrogen gas, which can be safely vented or used.
Explore our Products
Types of Brine-Based Electrochlorinators
Batch Type
Continuous Type
Technical Specification
Brine Based Electrochlorinators
- Salt Dissolution: The process begins by dissolving food-grade salt in water to create a brine solution.
- Electrolysis:

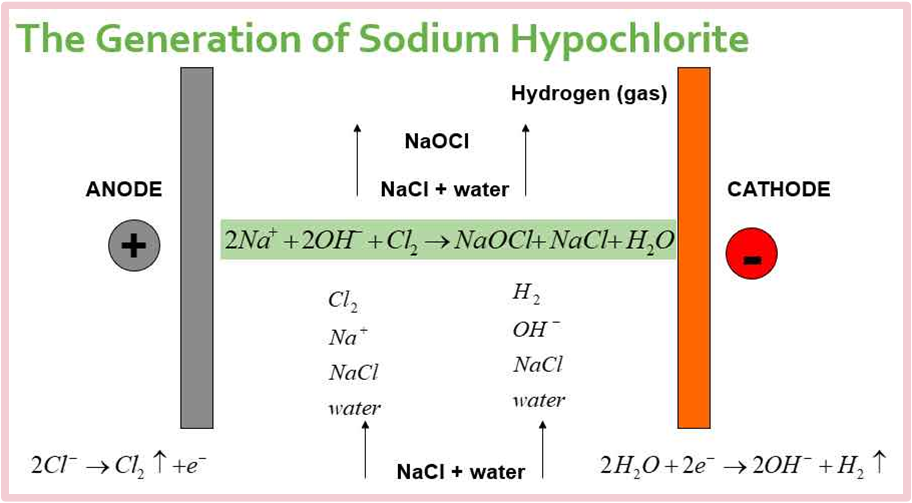

- Electrochemical Reactions: : A direct current is applied to a brine solution, causing it to decompose. At the anode, chloride ions (Cl-) are oxidised to produce chlorine gas (Cl2): 2Cl- → Cl2 + 2e- At the cathode, water molecules (H2O) are reduced to produce hydrogen gas (H2) and hydroxide ions (OH-): 2H2O + 2e- → H2 + 2OH- Sodium ions (Na+) remain in the solution along with the hydroxide ions.
- Formation of Sodium Hypochlorite:: The chlorine gas produced at the anode reacts with the sodium hydroxide (formed at the cathode) to produce sodium hypochlorite (NaOCl): Cl2 + 2NaOH → NaCl + NaOCl + H2O
- Overall Reaction: The overall reaction can be summarized as: NaCl + H2O + Electricity → NaOCl + H2
- Sodium Hypochlorite Formation : The chlorine gas produced at the anode reacts with the water and hydroxide ions to form hypochlorous acid (HOCl), which then reacts with the remaining hydroxide ions to form sodium hypochlorite (NaOCl).
- Sodium Hypochlorite Storage: : The generated sodium hypochlorite solution is typically stored in a holding tank for later use.
Applications
Brine Based Electrochlorinators
Drinking water disinfection
Ensuring safe and clean drinking water.
Swimming pool sanitation
Maintaining pool water quality.
Industrial water treatment
Treating process water and wastewater.
Other Disinfection Needs
Such as in food processing, agriculture, and aquaculture
