Overview

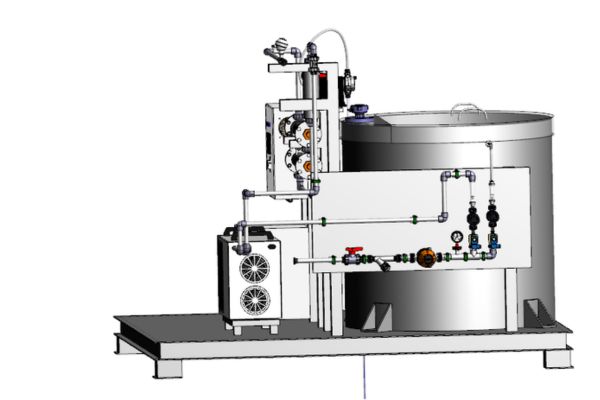

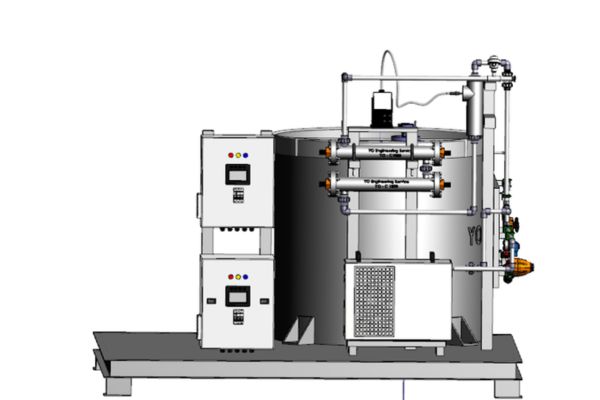

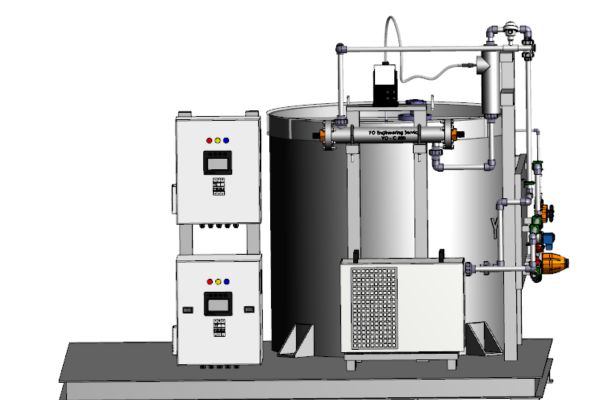

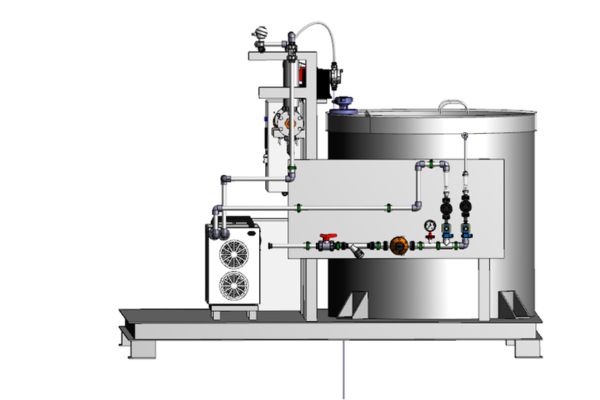

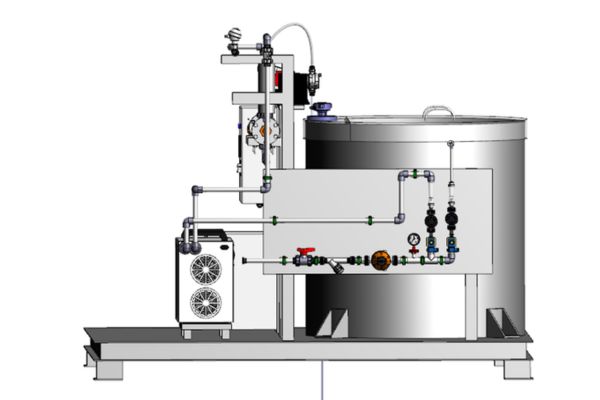

Continious Type
Continuous type brine electrochlorination is a process where sodium hypochlorite, a disinfectant, is generated on-site by electrolyzing a saltwater (brine) solution. This method is used to disinfect water for various applications, including drinking water, swimming pools, and industrial water treatment. It offers a safer alternative to storing and transporting traditional chlorine products by producing disinfectant only when needed.
Safety
Eliminates the need to transport and store large quantities of chlorine or hypochlorite solutions, reducing the risk of accidents
Cost-effective
Produces disinfectant on-site, potentially reducing costs associated with purchasing and storing traditional chlorine products
Environmentally friendly
Reduces the need for transportation of hazardous chemicals and minimizes the generation of harmful byproducts.
Reliable
Provides a consistent supply of disinfectant on demand.
YO-C500
YO-C1000
YO-C2000
Technical Specification
Continious Type
- Brine Preparation: Salt (sodium chloride) is dissolved in water to create a concentrated brine solution.
- Brine Dilution:Chilled water is mixed with the concentrated brine using a static mixer and water chiller to control temperature rise from the exothermic reaction
- Electrolysis : The brine solution is then fed into an electrolytic cell where an electrical current is applied
- Disinfection :The electrolysis process breaks down the salt and water molecules, producing sodium
- On-site Use:The generated sodium hypochlorite is then used to disinfect the water, effectively eliminating harmful bacteria and pathogens
- Hydrogen Gas Byproduct:Hydrogen gas is also produced during the process is safely vented through dilution hydrogen blowers.
- Safety Measures:Continuous electrochlorination systems incorporate safety features like hydrogen venting systems, temperature sensors, and level switches to ensure safe and reliable operation.
Applications
Continious Type
Drinking water disinfection
Ensuring safe and clean drinking water for communities.
Swimming pool disinfection
Maintaining a safe and hygienic environment for swimmers.
Industrial water treatment
Disinfecting water used in industrial processes, such as cooling water systems.
Wastewater treatment
Removing harmful pathogens from wastewater before discharge.
