Overview

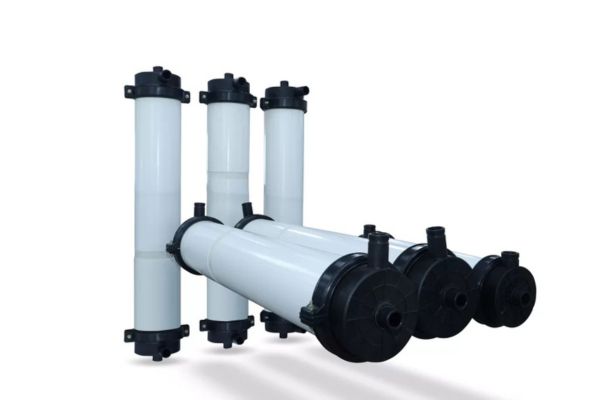

Ultrafiltration Membranes
With steady increase in global population, the need for recycling and reuse of water resources for industrial and domestic purposes becomes indispensable for the future of our planet. Since its commercialization in the 1960s, water purification using ultrafiltration (UF) technology has found its path into various fields ranging from medicine to dairy. This is primarily due to the UF membranes’ potency and efficiency in separating contaminants, particulates, macromolecules and suspended solids.
Yo Engineering are specialized in manufacturing out-to-in and in-to-out Single Bore Membranes (SBM) for different industrial applications. Our capillary-type UF membranes are made of anti-fouling materials with the following characteristics:
Standard Sizes of Our SBM Membranes
| Out-to-in | In-to-Out |
|---|---|
|
Ø225 mm x 1530 mm; 51 m² |
Ø225 mm x 1530 mm; 55 m² |
|
Ø225 mm x 1830 mm; 65 m² |
Ø225 mm x 1830 mm; 65 m |
|
Ø280 mm x 1530 mm; 77 m² |
Ø280 mm x 1530 mm; 65 m² |
|
Ø280 mm x 1830 mm; 90 m² |
Ø280 mm x 1830 mm; 85 m² |
Advanced Water Filtration
Ultrafiltration membranes effectively remove suspended solids, bacteria, and fine impurities from water, delivering high-quality filtration performance with turbidity levels below 0.5 NTU for reliable industrial and commercial applications.
Superior Bacterial Reduction
Engineered with advanced membrane technology, these systems provide more than 6 log bacterial reduction while ensuring consistent water purity, improved safety, and dependable long-term operation.
Long Service Life & High Flux
Designed for continuous operation, ultrafiltration membranes offer a flux range between 60 and 150 Litre/m²/hr with a service life of up to 5 years based on feed water quality, reducing maintenance and operational costs.
Technical Specification
Ultrafiltration Membranes
- Flux Range: 60 – 150 Litre/m²/hrrade 1 / Grade 2
- Service Life : Up to 5 Years Based on Feed Water Quality
- Suspended Solids : No Suspended Solids in Output Water
- Bacterial Reduction: > 6 Log Reduction
- Turbidity Level : < 0.5 NTU
- Membrane Type : Out-to-In & In-to-Out Configuration
- Application Areas : Water Treatment, Wastewater Recycling, Industrial Filtration & Drinking Water Systems
